Brocade® ICX® 6430 and 6450 Switches provide enterprise-class stackable LAN switching at an entry-level price, allowing organizations to buy what they need now and easily scale as demand grows and new technologies emerge. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising on performance and reliability.

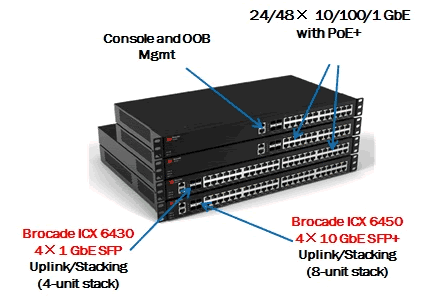

The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and four 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports—with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+)—to support enterprise edge networking, wireless mobility, and IP communications.
The Brocade ICX 6430-C Compact Switch provides an enterprise-class Layer 2 LAN switching solution to meet the growing demands of campus networks. Designed in a small form factor with fanless operation for classroom, retail, factory, small office, and workgroup environments, the Brocade ICX 6430-C delivers enterprise-class functionality at an affordable price. It is available in a 12-port 10/100/1000 Mbps model with IEEE 802.3af PoE and 802.3at PoE+ on four ports and four additional 1 GbE ports for uplinks.
The Brocade® ICX® 6610 Switch redefines the economics of enterprise networking by providing unprecedented levels of performance and availability in a stackable form factor. It delivers the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch.

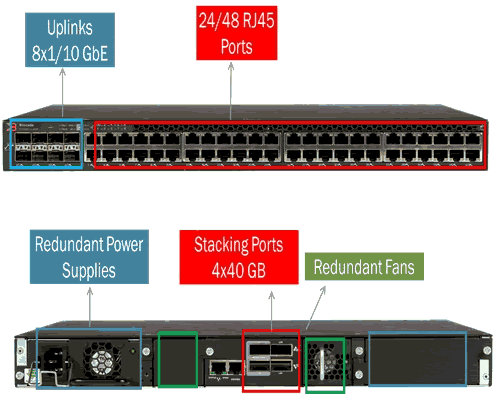

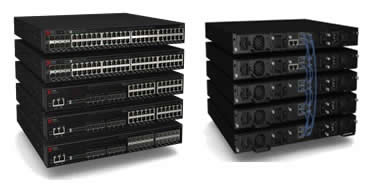

The Brocade ICX 6610 delivers wire-speed, non-blocking performance across all ports to support high-bandwidth and latency-sensitive applications such as voice/video streaming and Virtual Desktop Infrastructure (VDI). Up to eight Brocade ICX 6610 Switches can be stacked using four standards-based full-duplex 40 Gbps stacking ports, providing an unprecedented 320 Gbps of backplane stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Additionally, each switch can provide up to eight 10 Gigabit Ethernet (GbE) ports activated through a software license for high-speed connectivity to the aggregation or core layers.
Brocade ICX 6610 Switches support the Power over Ethernet Plus (PoE+) standard (802.3at) to provide up to 30 watts of power to each connected device. This high-powered solution simplifies wiring for next-generation edge devices such as video conferencing phones, pan/tilt surveillance cameras, and 802.11n wireless Access Points (APs). With a 1500-watt power budget per switch (with two power supplies), the Brocade ICX 6610 24- and 48-port PoE models can supply full Class 3 (15.4 watts) or full Class 4 PoE+ (30 watts) power to every port.
